- 产品名称:机械阀
- 产品型号:MSV系列
- 所属类别:>>电磁阀
- 品牌:上海仪川仪表厂(上海仪川仪表厂)
- 销售单位:上海仪川仪表销售有限公司
订购 码 Ordering Code 规格 Specification 型 号 Model MSV86321 MSV86522 MSV98322 工作介质 Working Medium 经40微米过滤的空气 40 Micron Filtered Air 位通数 Position and Way N O 二位三通 Two-position Three-way 二位五通
详细介绍

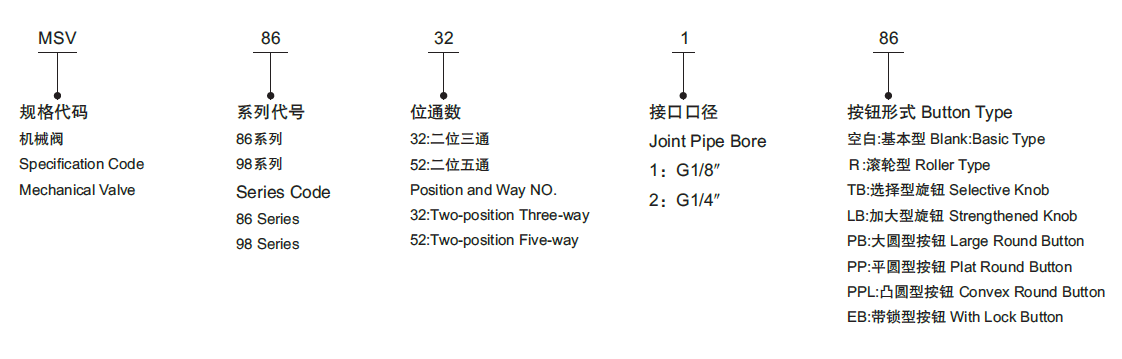

订购码 Ordering Code
规格 Specification

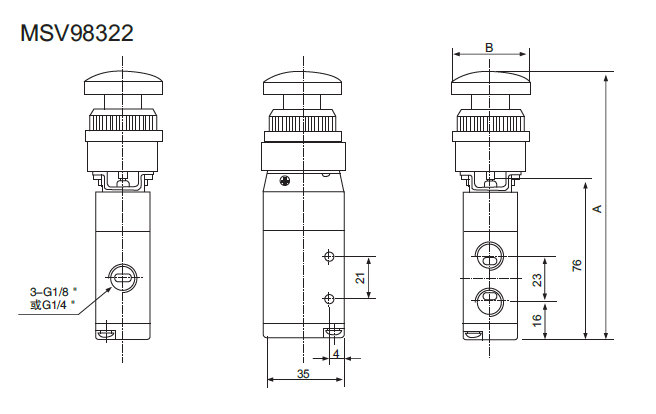

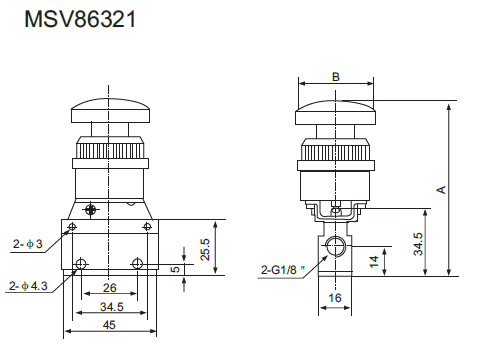

外形尺寸 Overall Dimension
尺寸表 Dimension Sheet
规格 Specification
| 型 号 Model | MSV86321 | MSV86522 | MSV98322 |
|
工作介质 Working Medium |
经40微米过滤的空气 40 Micron Filtered Air | ||
|
位通数 Position and Way N O |
二位三通 Two-position Three-way | 二位五通 Two-position Five-way | 二位三通 Two-position Three-way |
|
有效截面积 Effective Sectional Area |
12mm (CV=0.67) | 16mm2(CV=0.89) | 16mm2(CV=0.89) |
|
接口口径 Joint Pipe Bore |
G1/8″ | G1/4″ | G1/4″ |
|
使用压力范围 Working-pressure Range |
0~0.8MPa | ||
|
使用温度范围 Operating Temperature |
0~60℃ | ||

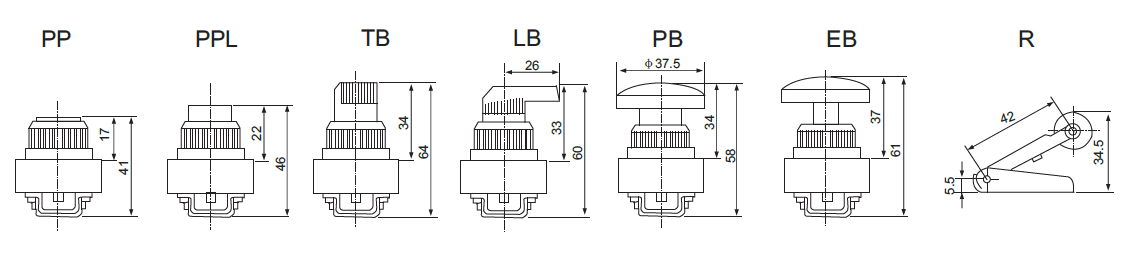

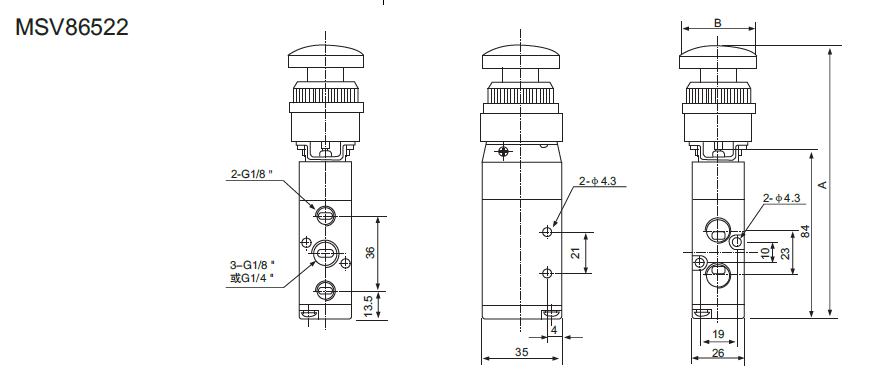

外形尺寸 Overall Dimension
尺寸表 Dimension Sheet
| 系列 Series |
符号/型号 Symbol/Model |
PP | PPL | LB | TB | EB | PB | R |
| MSV86522 | A | 114 | 119 | 133 | 136.5 | 134 | 131 | 107.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 | |
| MSV98322 | A | 106 | 111 | 125 | 129.5 | 126 | 123 | 99.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 | |
| MSV86321 | A | 66 | 71 | 85 | 88.5 | 86 | 83 | 59.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 |
