- 产品编号:SYCIF-1657186186
- 产品名称:手阀系列
- 产品型号:4H
- 所属类别:>>电磁阀
- 品牌:上海仪川仪表厂(上海仪川仪表厂)
- 销售单位:上海仪川仪表销售有限公司
型号说明 Model expressing methods 图形 符 号 Graphic symbol 标准规格 Standard specification 型号 Model 4H210-06 4H210-08 4H310-08 4H310-10 工作介质 Working-pressure 空气、水、油 Air、Water、Oil 动作形式 Motion
详细介绍

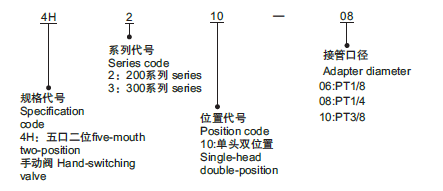

型号说明 Model expressing methods
图形符号 Graphic symbol
标准规格 Standard specification
外形尺寸图(mm) Outline dimension drawing
图形符号 Graphic symbol
标准规格 Standard specification
| 型号 Model | 4H210-06 | 4H210-08 | 4H310-08 | 4H310-10 |
| 工作介质 Working-pressure | 空气、水、油 Air、Water、Oil | |||
| 动作形式 Motion pattern | 直动式 Straightly-action type | |||
| 有效截面积 Effective section area | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) |
| 接管口径 Adapter diameter |
进气air-in=PT1/8 出气air-out=PT1/8 排气exhausting=PT1/8 |
进气air-in=PT1/4 出气air-out=PT1/4 排气exhausting=PT1/8 |
进气air-in=PT1/4 出气air-out=PT1/4 排气exhausting=PT1/4 |
进气air-in=PT3/8 出气air-out=PT3/8 排气exhausting=PT1/4 |
| 使 用压力范围 Rang of pressure applied | 0~8bar(10~8kgf/cm2) | |||
| 使用温度 范围 Ambient temperature | -5~60℃ | |||
| 润滑 Lubricate | 20CST以下 Below 20CST | |||
| 操作摇摆度 Operate the sway degree | ±15° | |||

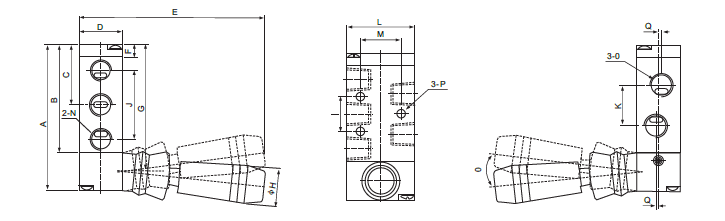

外形尺寸图(mm) Outline dimension drawing
|
型号/符号 Model/mark |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | C | Q | 0 |
| 4H210-06 | 76.7 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | φ19 | 20 | 36 | 18 | 35 | 23.5 | PT1/8 | PT1/8 | φ4.3 | - | 15.8 |
| 4H210-08 | 76.7 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | φ19 | 20 | 36 | 21 | 35 | 23.5 | PT1/8 | PT1/4 | φ4.3 | 1.5 | 15.8 |
| 4H310-08 | 92.5 | 72.5 | 40 | 27 | 100 | 7.5 | 82.5 | φ19 | 24 | 45 | 22 | 40 | 27.5 | PT1/4 | PT1/4 | φ4.3 | - | 17.5 |
| 4H310-10 | 92.5 | 72.5 | 40 | 27 | 100 | 7.5 | 82.5 | φ19 | 24 | 45 | 24 | 40 | 27.5 | PT1/4 | PT3/8 | φ4.3 | 2 | 17.5 |
