- 产品名称:手转阀
- 产品型号:4HV系列
- 所属类别:>>电磁阀
- 品牌:上海仪川仪表厂(上海仪川仪表厂)
- 销售单位:上海仪川仪表销售有限公司
图形 符 号 Graphic symbol 型号说明 Model expressing methods 标准规格 Standard specification 型号 Model 4HV2□□-06 4HV2□□-08 4HV3□□-08 4HV3□□-10 4HV4□□-15 4HV4□□-20 工作介质 Working-Medium 空气 Air 动
详细介绍

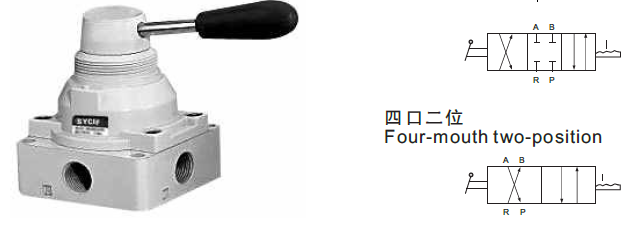

图形符号 Graphic symbol
型号说明 Model expressing methods
标准规格 Standard specification
流量特性 Flow characteristic
外形尺寸图(mm) Outline dimension drawing
面板安装型 Panel installation type
阀体安装型 Valve installation type
型号说明 Model expressing methods
标准规格 Standard specification
| 型号 Model | 4HV2□□-06 | 4HV2□□-08 | 4HV3□□-08 | 4HV3□□-10 | 4HV4□□-15 | 4HV4□□-20 |
| 工作介质 Working-Medium | 空气 Air | |||||
| 动作方式 Motion pattern | 四口三位 Four-mouth three-position / 四口二位 Four-mouth two-position | |||||
| 位置数 Position number | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | |
| 接管口径 Adapter diameter | 14mm2(0.78) | 16mm2(0.89) | 14mm2(1.67) | 14mm2(1.83) | 14mm2(4.89) | 14mm2(5.27) |
| 有效截面积 Effective section area | 0~10kgf/cm2 | |||||
| 使 用压力范围 Range of pressure applied | ±10% | |||||
| 保证耐压力 Guaratee pressure with stand | 15kgf/cm2 | |||||
| 使 用温度 范围 Ambient temperature | -5~60℃ | |||||
| 工作角度 The work angle | 90° | |||||

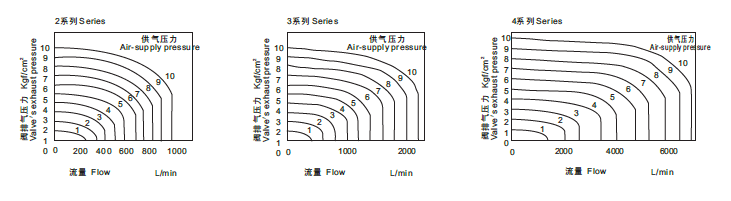

流量特性 Flow characteristic

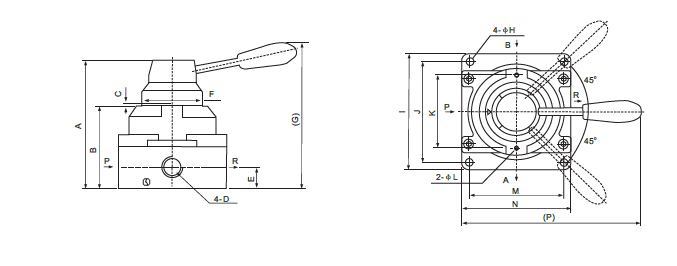

外形尺寸图(mm) Outline dimension drawing
面板安装型 Panel installation type
阀体安装型 Valve installation type
|
型号/符号 Model/mark |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
| 4HV2□□-06 | 72.6 | 45 | 1.5 | PT1/8 | 11.5 | M34 | 92.5 | 5 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV2□□-08 | 72.6 | 45 | 1.5 | PT1/4 | 11.5 | M34 | 92.5 | 5 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV3□□-08 | 88.5 | 56 | 1.5 | PT1/4 | 13.5 | M40 | 104 | 6.6 | 74 | 62 | 51 | 3 | 74 | 74 | 140 |
| 4HV3□□-10 | 88.5 | 56 | 1.5 | PT3/8 | 13.5 | M40 | 104 | 6.6 | 74 | 62 | 51 | 3 | 74 | 74 | 140 |
| 4HV4□□-15 | 110.3 | 72 | 2 | PT1/2 | 18 | M52 | 126 | 6.6 | 102 | 89 | 64 | 3 | 94 | 94 | 160 |
| 4HV4□□-20 | 110.3 | 72 | 2 | PT3/4 | 18 | M52 | 126 | 6.6 | 102 | 89 | 64 | 3 | 94 | 94 | 160 |
