- 产品编号:SYCIF-1653186186
- 产品名称:水阀系列二位二通直动式电磁阀
- 产品型号:2W
- 所属类别:>>电磁阀
- 品牌:上海仪川仪表厂(上海仪川仪表厂)
- 销售单位:上海仪川仪表销售有限公司
型号说明 Model expressing methods 标准规格 Standard specification 型号 Model 2W025-06 2W025-08 2W040-10 2WH012-06 2WH012-08 2WH020-10 工作介质 Working-Medium 空气、水、油、瓦斯 Air, water, oil, gas 动作方式 Action
详细介绍

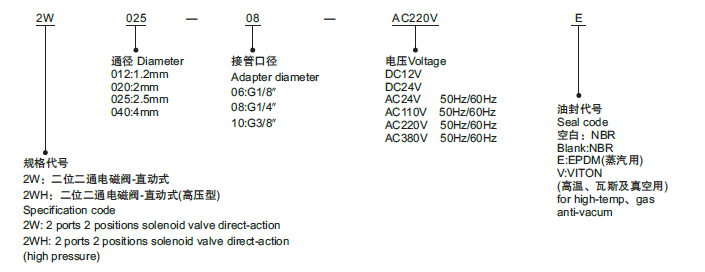

型号说明 Model expressing methods
标准规格 Standard specification
标准规格 Standard specification
| 型号 Model | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 | ||
| 工作介质 Working-Medium | 空气、水、油、瓦斯 Air, water, oil, gas | |||||||
| 动作方式 Action mode | 直动式 Straightly-action type | |||||||
| 型式 Style | 常闭型 Normally closed | |||||||
| 流量孔径 Flow bore | 2.5 | 4 | 1.2 | 2 | ||||
| CV值 CV flow factor | 0.23 | 0.60 | 0.05 | 0.15 | ||||
| 接管口径 Adapter diameter | G1/8″ | G1/4″ | G3/8″ | G1/8″ | G1/4″ | G3/8″ | ||
| 使用流体粘滞度 Fluid viscosity | 20 CST以下(Below) | |||||||
| 使用压力MPa Working-pressure |
空气、水、油、瓦斯：0~0.7 0~0.7 Air, water, oil, gas |
空气、水、油、瓦斯：0~2.0 0~2.0 Air, water, oil, gas |
||||||
| 耐压MPa Proof pressure | 1.0 | 3.5 | ||||||
| 工作温度℃ Working temperature | -5~80℃ | |||||||
| 使用电压范围 Rated voltage ran | ±10% | |||||||
| 阀体材质 Body material | 黄铜 Brass | |||||||
| 油封材质 Oil seal material | EBR,EPDM或VITON NBR,EPDM or VITION | |||||||
