- 产品编号:SYCIF-1652186186
- 产品名称:(大口径)水阀系列二位二通直动式电磁阀
- 产品型号:2W
- 所属类别:>>电磁阀
- 品牌:上海仪川仪表厂(上海仪川仪表厂)
- 销售单位:上海仪川仪表销售有限公司
型号说明 Model expressing methods 图形 符 号 Graphic symbol 标准规格 Standard specification 型号 Model 2W160-10 2W160-15 2W200-20 2WH250-25 2WH350-35 2WH400-40 2WH500-50 工作介质 Working-Medium 空气、水、油、瓦斯
详细介绍

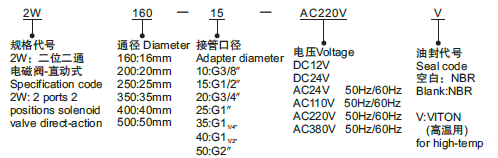

型号说明 Model expressing methods
图形符号 Graphic symbol
标准规格 Standard specification
外形尺寸图(mm) Outline dimension drawing
尺寸表 Dimension sheet
图形符号 Graphic symbol
标准规格 Standard specification
型号 Model | 2W160-10 | 2W160-15 | 2W200-20 | 2WH250-25 | 2WH350-35 | 2WH400-40 | 2WH500-50 |
工作介质 Working-Medium | 空气、水、油、瓦斯 Air, water, oil, gas | ||||||
动作方式 Action mode | 直动式 Straightly-action type | ||||||
型式 Style | 常闭型 Normally closed | ||||||
通径 Diameter | 16 | 20 | 25 | 35 | 40 | 50 | |
CV值 CV flow factor | 4.8 | 7.6 | 12 | 24 | 29 | 0.15 | |
接管口径 Adapter diameter | G3/8″ | G1/2″ | G3/4″ | G1″ | G1/4″ | G1/2″ | G2″ |
使用流体粘滞度 Fluid viscosity | 20 CST以下(Below) | ||||||
使用压力MPa Working-pressure | 空气:0~0.7;水:0~0.5;油:0~0.5 Air:0~0.7 water:0~0.5 oil:0~0.5 | ||||||
耐压MPa Proof pressure | 1.0 | ||||||
工作温度℃ Working temperature | -5~80℃ | ||||||
使用电压范围 Rated voltage ran | ±10% | ||||||
阀体材质 Body material | 黄铜 Brass | ||||||
油封材质 Oil seal material | EBR,EPDM或VITON NBR,EPDM or VITION |

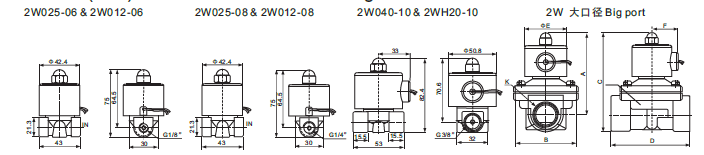

外形尺寸图(mm) Outline dimension drawing
尺寸表 Dimension sheet
型号 Model | A | B | C | D | E | F | K |
2W160-10 | 101.5 | 57 | 117 | 69 | 50 | 36 | G3/8″ |
2W160-15 | 101.5 | 57 | 117 | 69 | 50 | 36 | G1/2″ |
2W200-20 | 107 | 57 | 123.5 | 73 | 50 | 36 | G3/4″ |
2WH250-25 | 111.5 | 73.5 | 134.5 | 99 | 50 | 36 | G1″ |
2WH350-35 | 142 | 95 | 172 | 123 | 70.5 | 56 | G11/4″ |
2WH400-40 | 142 | 95 | 172 | 123 | 70.5 | 56 | G11/2″ |
2WH500-50 | 172 | 123 | 209 | 168 | 70.5 | 56 | G2″ |
