电磁阀
  • 产品编号:SYCIF-1650186186
  • 产品名称:电磁阀
  • 产品型号:VF5000系列
  • 所属类别:>>电磁阀
  • 品牌:上海仪川仪表厂
  • 销售单位:上海仪川仪表销售有限公司
标准规格 Standard specification 流体 Fluids 空气 Air 环境及液体温度 Environment fluid temperature 最高50℃ Max 50℃ *润滑 Lubrication 不需要 Do not need 手动操作 Hand operated 螺丝刀锁定型 Locking-type afte
详细介绍


标准规格 Standard specification
流体 Fluids 空气 Air
环境及液体温度 Environment & fluid temperature 最高50℃ Max 50℃
*润滑 Lubrication 不需要 Do not need
手动操作 Hand operated 螺丝刀锁定型 Locking-type after screw drier press down
抗冲击/震动能力 Resistance to shock 30G/5G(8.3~2000Hz) 30G/5G(8.3~2000Hz)
密封 Sealed 防灰尘 Dust proof
* 若需要润滑请用透平1号油ISOVG32。
If needing lubrication,please use turbine No oil ISOVG32.

电磁线圈规格 Electromagnetic coil specification

接电方式 Electrification type 直接出线式(G),DIN插座工(D) Directly coil-out type(G),DIN socket type (D)
*标准电压 Standard voltage 交流:110V,200V(50HZ) 直流:12V,24V AC: 110V,200V(50HZ) DC:12V,24V
容允电压变动范围 Permitted volt fluctuation range 额定电压:-15%+10% -15%+10% of rated voltage
绝缘 Insulation B级或相同等级 B class or same class
功能消耗
Power consumption
交流 AC 起动:5.6VA,持续:3.4VA Start:5.6VA,Lasting:3.4VA
直流 DC 1.8W/2W(带指示灯) 1.8W/2W(With indication lamp)
过压抑制器 Over-volt suppressor 交流:压敏电阻,直流:二极管 AC:voltage dependent resistor,DC:diode
指标灯 Indication lamp 交流:氖灯,直流:发光二极管 AC:neon lamp,DC:luminous diode
* 另有非标准电压可供选择。
There is other non-standard volt for being selected

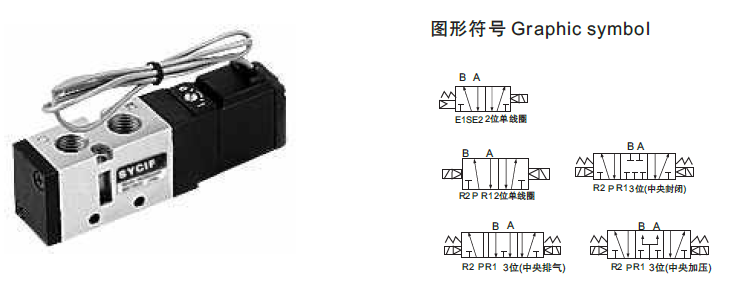

型号 Model 位置数
Places
number
电磁线圈
Magnetic coil
操作压力范围
Operation pressure
range kgf/cm3(Mpa)
反应时间
Pesponse
time(ms)
最高操作频率(次/s)
The highest action
frequency(times/sec.)
接管口径
Adapter
diameter
有效断面积
mm2(cv值)
Effective section area
重量
Weight
(kgf)
VF5120-□△B-03 2 单线圈 Single coil 1.5~9(0.15~0.9) ≤30 5 3/8 45(2.5) 0.21
VF5220-□△B-03 2 双线圈 Double coil 1~9(0.1~0.9) ≤30 5 42(2.5) 0.29
VF5230-□△B-03 3 双(中央封闭)
double(middle
position closeing)
1~9(0.1~0.9) ≤50 3 36(2) 0.42
VF5240-□△B-03 3 双(中央排气)
double(middle
position exhaust)
1~9(0.1~0.9) ≤50 3 41.4(2.3) 0.42
VF5520-□△B-03
位置数
Places
number
2
2
3
3
3 双(中央加压)
double(middle
position pressurzing)
1~9(0.1~0.9) ≤50 3 36(2) 0.42

注1)□-代表使用电压
Note 1)□-denotes
working pressure.
3=110V
4=220VAC
5=24VDC
6=12VDC
△-代表接电方式
G=直接出线式(引线长300mm)
D=DIN插座式
DZ=DIN插座式
带有指标灯和过压抑制器
△-Means electrification way
G=Directly coil-out type(lead wire'length 300mm)
D=DIN socket type
DZ=DIN socket type
With indication lamp and over-volt suppressor
订货举例:1)需要2位5通单线圈,电压120V,DIN插座式;
正确型号:VF2120-6DB-02
2)需要3位5通(中央加压),电压:220VAC,G直接出线;
正确型号:VF5520-6GB-03
Order instance:1)need two-position five-way single coil,volt being
120VDC,DIN socket type:correct model:VF3130-6DB-02;
2)need three-poditon five-way (center boost),volt:220VAC,G directly leading;correct model:VF5520-4GB-03.

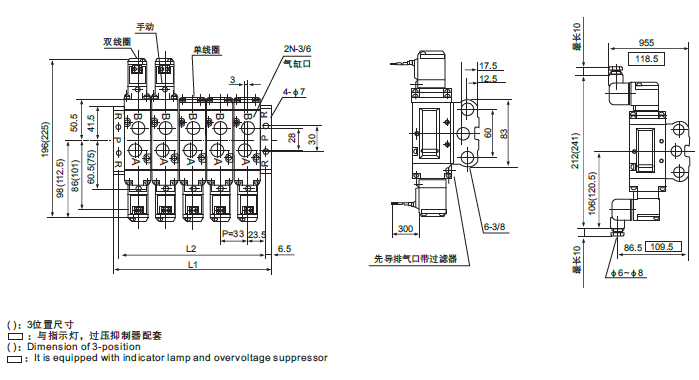

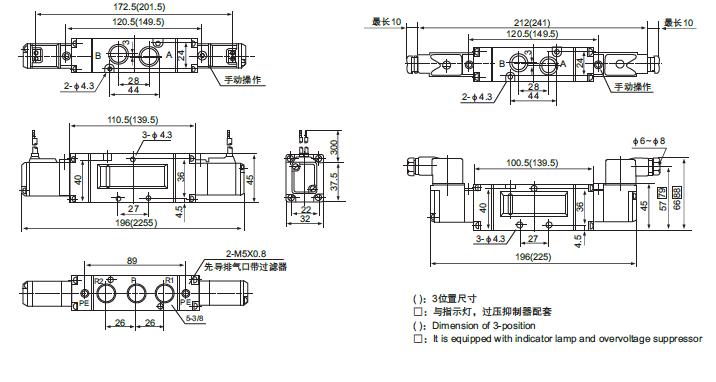

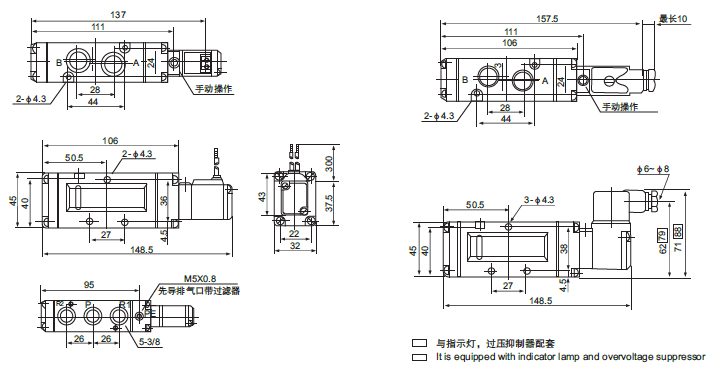

外形尺寸图(mm) Outline dimension drawing
VF SOLENOID VALVE SERIES
VF5210
直线出线式(G) Directly coil-out type(G)                   DIN插座式(D) DIN socket type(D)
