- 产品编号:SYCIF-1641186186
- 产品名称:电磁阀
- 产品型号:4M系列
- 所属类别:>>电磁阀
- 品牌:上海仪川仪表厂(上海仪川仪表厂)
- 销售单位:上海仪川仪表销售有限公司
图形符号 Graphic symbol 标准规格 Standard specification 型号 Model 4M210-06 4M220-06 4M210-08 4M220-08 4M310-08 4M320-08 4M310-10 4M320-10 工作介质 Working-Medium 空气(40米滤纲过滤) Air(40 micron cleaned) 动作方式 M
详细介绍

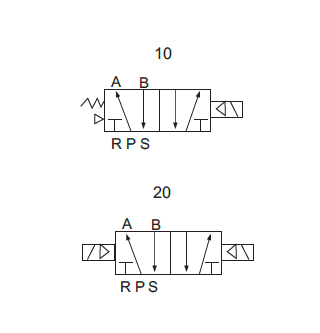

图形符号 Graphic symbol
标准规格 Standard specification

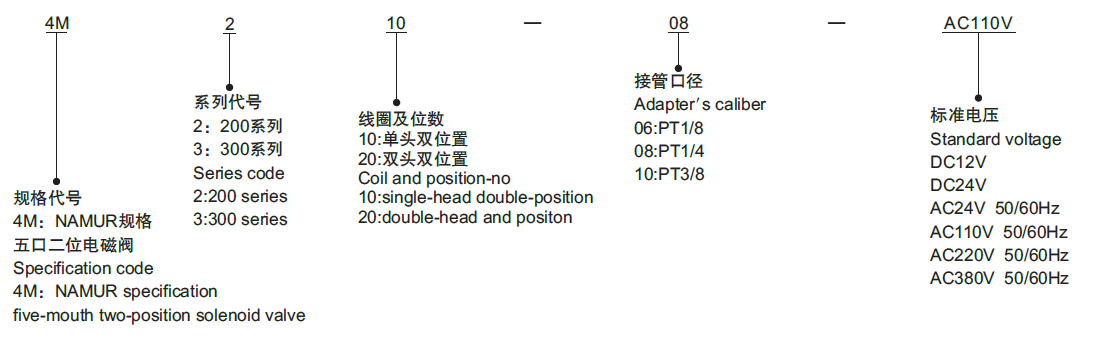

型号说明 Model expressing methods
流量特性 Flow characteristic
请参考相应规格的4V系列电磁阀
Please refer to the 4V series solenoid valve of corresponding specification

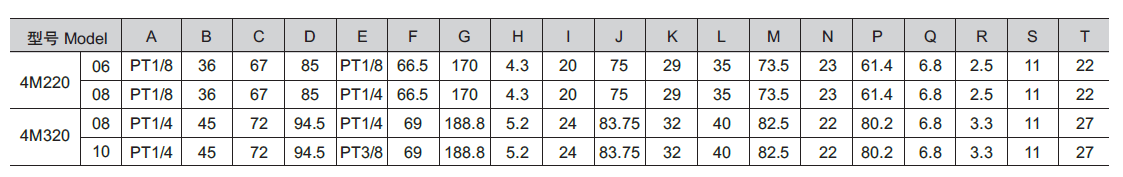

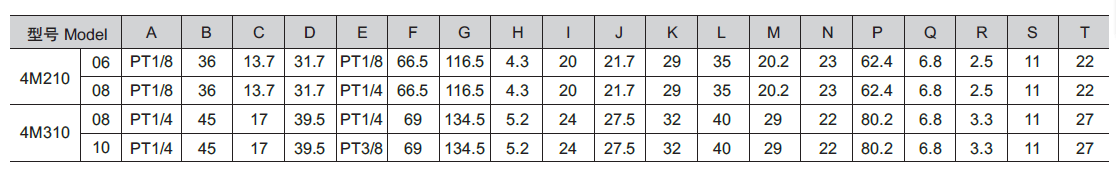

外形尺寸图(mm) Outline dimension drawing

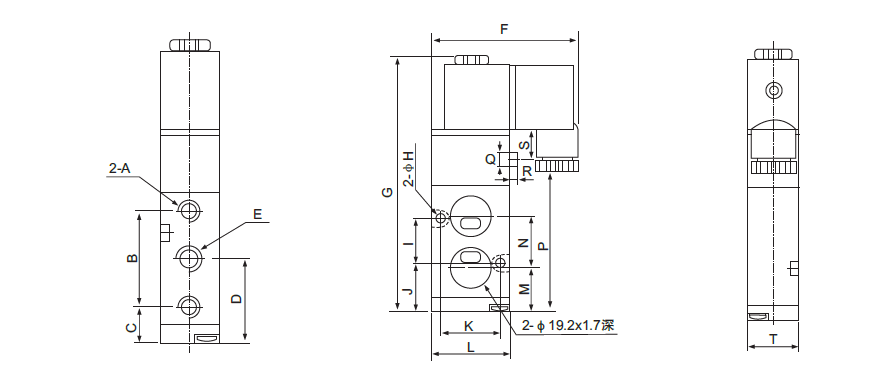

单头双位置 One-head two-position

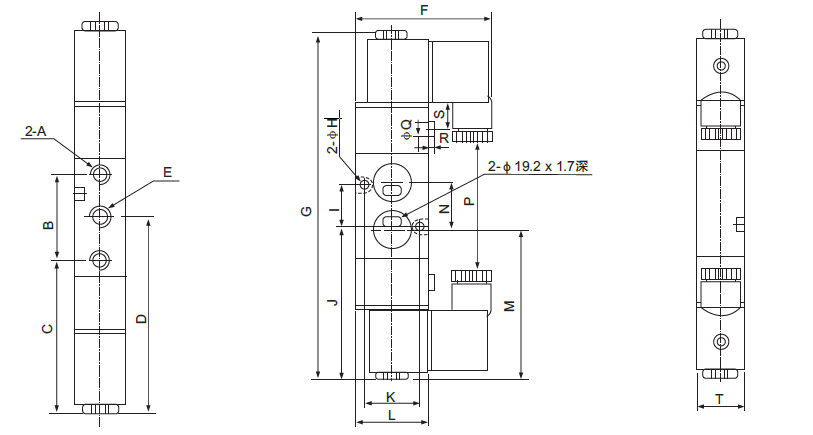

双头双位置 two-head two-position
标准规格 Standard specification
| 型号 Model |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
|||
| 工作介质 Working-Medium | 空气(40米滤纲过滤) Air(40 micron cleaned) | ||||||
| 动作方式 Motion pattern | 内部先导式 Internal pilot | ||||||
| 位置数码相机 Position number |
五口二位 Five-mouth two-position |
||||||
| 有效截面积 Efective sectional area(mm ) | 14mm2(Cv=0.78) | 16mm2(Cv=0.89) | 25mm2(Cv=1.39) | 30mm2(Cv=1.67) | |||
| 接管口径 Adapter's caliber |
进气=排气=PT1/8 air-in=exhausting=PT1/8 |
进气=PT1/4排气=PT1/8 air-in=PT1/4exhausting=PT1/8 |
进气=排气=PT1/4 air-in=exhausting=PT1/4 |
进气=PT3/8排气=PT1/4 air-in=PT3/8exhausting=PT1/4 |
|||
| 润滑 Lubrication | 不需要No required | ||||||
| 使用压力 Working-pressure | 1.5~8.0kgf/cm2 | ||||||
| 最大耐压力 Biggest withstanding pressure | 12kgf/cm2 | ||||||
| 工作温度 Ambient temperature | -5~60℃(23~140°F) | ||||||
| 电压变动范围 Voltage range | -15%~±10% | ||||||
| 耗电量 Power consumption | AC:380V:2.5VA; AC220V:2.0VA; AC110V:2.5VA; AC24V:3.5VA; DC24V:3.0W; DC12V:2.5W | ||||||
| 绝缘性 Isulation | F级 Class F | ||||||
| 保护等级 Protection class | IP65(DIN40050) | ||||||
| 接电型式 Electrifying model | 直接出线式或端子式 Lead or Box type | ||||||
| 最高动作频率 Highest action frequency | 每秒三次 3/Sec | ||||||
| 最短励磁时间 Response time | 0.05秒(S) | ||||||
型号说明 Model expressing methods
流量特性 Flow characteristic
请参考相应规格的4V系列电磁阀
Please refer to the 4V series solenoid valve of corresponding specification
外形尺寸图(mm) Outline dimension drawing
单头双位置 One-head two-position
双头双位置 two-head two-position
